Aramid Aratech@-CRRC

CRRC Huaxian Aramid Insulation Paper Aratech786

Product Description:
　　A786 is a high performance version of aramid paper specially developed for new energy vehicle drive motors, which is an upgraded version of A766. It is a high temperature rolled aramid insulation paper, composed of pure aramid fibres, with excellent high temperature resistance and excellent electrical insulation, mechanical properties and flame retardant, good flexibility and tear resistance, good compatibility with various insulation paints, good oil resistance, and can be used with Class H, Class C insulation system for a long time at 200 ℃ environment.

Material Characteristics:
Heat resistant: Long term heat resistant temperature 210℃, short term working temperature 350℃.
Flame retardant. UL-94 rating V-0 level.
Oil resistance: Compatible with various ATF oils and resistant to strong acids and alkalis.
Moisture resistance: No significant degradation of dielectric properties and mechanical strength after exposure to moisture.
Excellent dielectric properties: high voltage and resistance, low dielectric coefficient and loss.
Good mechanical strength: flexible, tear resistant, compression resistant, abrasion resistant.
Environmentally friendly: non-toxic, non-polluting, does not release harmful substances

Application areas:

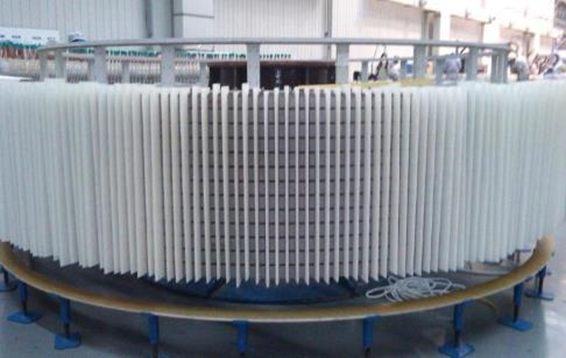

　　Particularly suitable for new energy vehicle drive slot insulation, at the same time suitable for all the need for sheet-type electrical insulation materials, in traction, wind power and other electric motors, as well as a variety of transformer slot insulation, turn-to-turn insulation, layer-to-layer insulation and end insulation, has been widely used.
