Mica tape ISOVOLTA

Isovolta Isovolta Mica Tape Mica Tape
Product description:

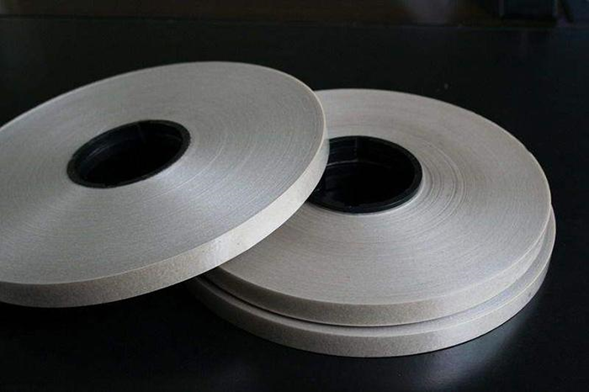

Conductofol, the mica tape brand of Isovolta Austria, consists of resin-impregnated calcined mica paper and a PET or PI film carrier for insulating rectangular copper conductors in high and low voltage coils.

Conductofol mica tapes can be divided into different types according to their structure and application, such as double-sided synthetic mica tapes, single-sided synthetic mica tapes, three-in-one tapes, double-film tapes, single-film tapes, etc. Various reinforcing materials and adhesives can be used, such as glass fibre cloth, polyester film, polyimide film, etc., as well as silicone resin and epoxy adhesive. These different types of mica tapes are suitable for various electrical equipment and engineering needs, such as fire resistant cables, motor insulation, etc., to improve the fire resistance, high temperature resistance and mechanical strength of electrical equipment.


Material Characteristics:
Excellent insulation: it has excellent insulation properties, which can prevent current leakage and improve corona resistance;.
High temperature resistance: it can still maintain stable performance under high temperature environment and is not easily melted or deformed;
Acid and alkali resistance: able to maintain stable performance in acidic and alkaline environments, not easily corroded;
Fire resistance: capable of maintaining the insulating properties of electrical equipment under fire or high temperature conditions, preventing short circuits and the spread of fire;
High mechanical strength: good mechanical strength through glass fibre and other reinforcing materials, able to withstand external pressure and impact.
Flexibility and permeability: sufficient flexibility at room temperature, favourable for winding coils; good permeability and permeability, favourable for extraction of air and volatiles within the insulation layer and penetration of resin in the VPI impregnation process;
Non-toxic and harmless: it does not contain toxic and harmful components, and does not produce toxic gases or fumes at high temperatures;

Fields of application:
Insulation layer of electromagnetic wires and cables;
Insulation of high-voltage motors, switchgear and transformer windings;
Corrosion-resistant pipes and valves;
Vehicle electrical system insulation;
Fireproofing materials such as building fire partitions, insulation and other fireproofing materials;
Aerospace electrical systems and thermal protection systems;
Seals for hydraulic systems, pumps and valves;


Product type:
CONDUCTOFOL-2009, single-sided polyester film reinforced mica tape, heat resistance class 155°C
CONDUCTOFOL-0264, single-sided polyester film reinforced mica tape, special hot melt adhesive, heat-resistant grade 155℃.
CONDUCTOFOL-2371, double-sided polyester film reinforced mica tape, heat-resistant grade 155℃.
CONDUCTOFOL-2159, double-sided polyester film reinforced mica tape, special hot melt adhesive, heat-resistant grade 155℃.
CONDUCTOFOL-K-2010, single-sided polyimide reinforcing mica tape, heat-resistant grade 180°C
CONDUCTOFOL-K-2011, single-sided polyimide reinforcing mica tape, coated with silicone resin, heat-resistant grade 180℃.
