Insulation sleeves

Heat Shrinkable Tubing, Braided Tubing, Spiral Tubing

Product Description:
Heat Shrinkable Tubing: Heat Shrinkable Tubing is a new type of environmentally friendly halogen-free flame retardant tube, which is made of polymer materials, formed into polymer alloy by scientific proportioning and mechanical mixing, then cross-linked by electron gas pedal radiation and continuously expanded. It can automatically contract when heated, tightly enveloping the protected object to provide electrical and mechanical protection. Mainly include: polyethylene (PE), EVA, polyvinyl chloride (PVC), PET, cross-linked polyolefin, fluoroelastomer, silicone rubber heat shrink tubing and so on.

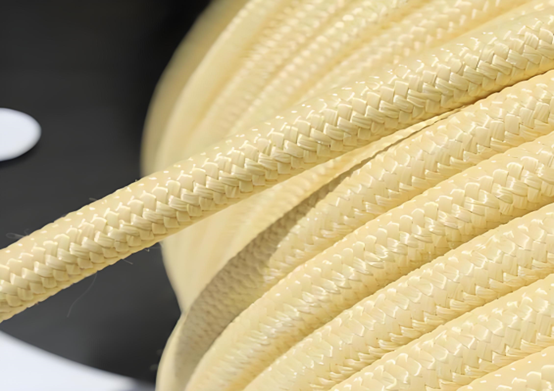

Braided sleeving: Braided sleeving is used to wrap and protect wires, cables, hoses and other components by combining specific materials into a tubular structure through braiding technology. It not only provides physical protection, but also has the function of organising and tidying up wires and cables, making the overall wiring neater and tidier. Mainly include: nylon (PA), polyester (PET), glass fibre, high temperature glass fibre braided sleeving, PPS (polyphenylene sulfide), intermediate aramid 1313 braided sleeving and so on.
Spiral casing: spiral in shape, mainly composed of outer and inner tubes, the outer and inner tubes are connected by a spiral structure, and the spiral direction is opposite. This design makes the spiral casing can provide stronger fastening force and sealing when connecting pipes. Mainly include: PET spiral casing, NOMEX spiral casing, KAPTON spiral casing, composite spiral casing, stainless steel/carbon steel strip spiral casing and so on.
Material Characteristics:

1. Flame retardant: It has good flame retardant properties, which can effectively prevent the spread of fire.

2. Insulation: Provides excellent insulation protection for wires and cables to prevent current leakage.

3. Temperature Resistance: Wide working temperature range, usually can be used continuously at temperatures from -55℃ to +220℃.
4. Soft and flexible: The material is soft and flexible, easy to install and wrap various shapes of protected objects.
5. Environmental protection: Complies with RoHS and other environmental standards, does not contain harmful substances.
6. Protective performance: Provide excellent protection against corrosion, wear, heat, moisture, chemicals and electromechanical shock.
7. Flexibility: Extremely flexible, can easily adapt to different cable shapes and sizes.
8. Heat Dissipation: The structure helps to dissipate heat, lowering the temperature of the cable and increasing its service life.
9. Installation and Maintenance: Easy to install and allows cables to be easily inspected for damage when necessary, facilitating maintenance and overhaul.
Applications:
1. Electronic and electrical equipment: Used for insulation protection and water and moisture proofing of electronic components, circuit boards, wires and cables.
2. Automotive: Used for insulation protection and protection of automotive wiring harnesses, engine wiring harnesses, sensors, etc.
3. Aerospace: Used in aerospace for insulation protection and anti-corrosion of various complex wires and cables.
4. Electric Power Industry: In the electric power system, it is used for insulation protection and waterproofing and moisture proofing of cable joints, transformers, bus bars, etc.
5. Industrial equipment: In industrial automation and mechanical equipment, used for insulation protection and protection of motors, sensors, control lines, etc.
Product Model:
Heat Shrinkable Tubing: Polyethylene PE Heat Shrinkable Tubing, EVA Heat Shrinkable Tubing, PVC Heat Shrinkable Tubing, PET Heat Shrinkable Tubing, Crosslinked Polyolefin Heat Shrinkable Tubing, Viton Heat Shrinkable Tubing, Silicone Rubber Heat Shrinkable Tubing, Teflon Heat Shrinkable Tubing.
